Description

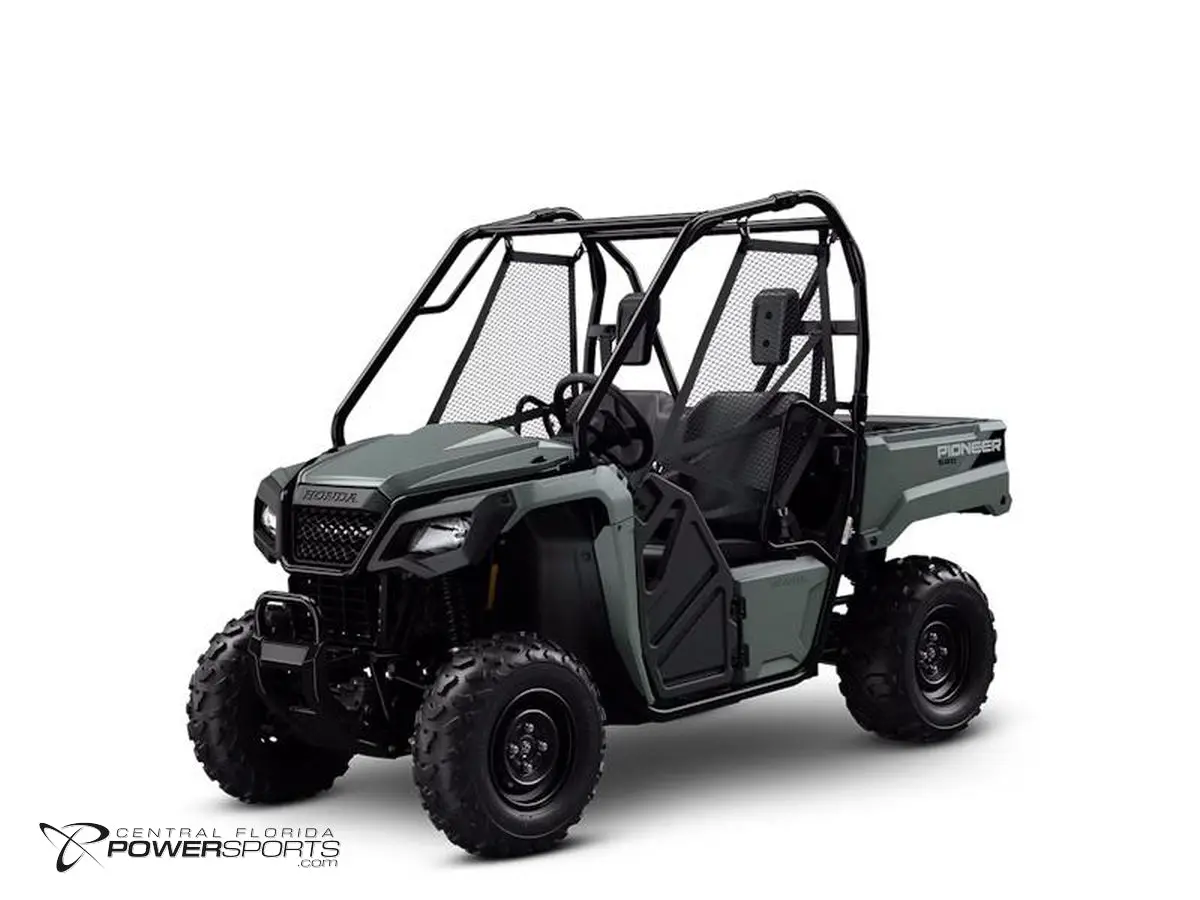

The 2026 Honda Pioneer 520 Powered by a 518 / 31.6 engine with manual / automatic clutch transmission and selectable 4×2 / 4×4 drivetrain.
Specifications
| Ground Clearance | 8.5 / 215.9 |
| Fuel Capacity | 4.1 / 15.5 |
| Towing Capacity | 1000 / 453.6 |
| Engine Type | Single-Cylinder |
| Cylinders | 1 |
| Engine Stroke | 4-Stroke |
| Cooling | Liquid |
| Compression Ratio | 9.5:1 |
| Carburetion Type | Fuel Injected |
| Bore | 96 / 3.78 |
| Stroke | 2.81 / 71.5 |
| Displacement | 518 / 31.6 |
| Transmission Type | Manual / Automatic Clutch |
| Number Of Speeds | 5 |
| Primary Drive | Shaft / Shaft |
| Driveline Type | Selectable 4X2 / 4X4 |
| Length | 105 / 2667 |
| Width | 50 / 1270 |
| Height | 71.2 / 1808.5 |
| Wheelbase | 73 / 1854.2 |
| Wet Weight | 1060 / 481 |
| Front Suspension Type | Independent Double Wishbone |
| Rear Suspension Type | Independent Double Wishbone |
| Front Travel | 5.8 / 147.3 |
| Rear Travel | 5.9 / 149.9 |
| Front Tire | Maxxis® 24 x 8-12 |
| Rear Tire | Maxxis® 24 x 10-12 |
| Front Brake Type | Dual Hydraulic Disc |
| Rear Brake Type | Hydraulic Disc |
| Seat Height | 27.7 / 703.6 |
Come to Central Florida PowerSports, your favorite New and Used Honda Motorcycle Dealer in the Orlando and Kissimmee, Florida area.
Prices exclude dealer setup, taxes, title, freight and licensing and are subject to change.
