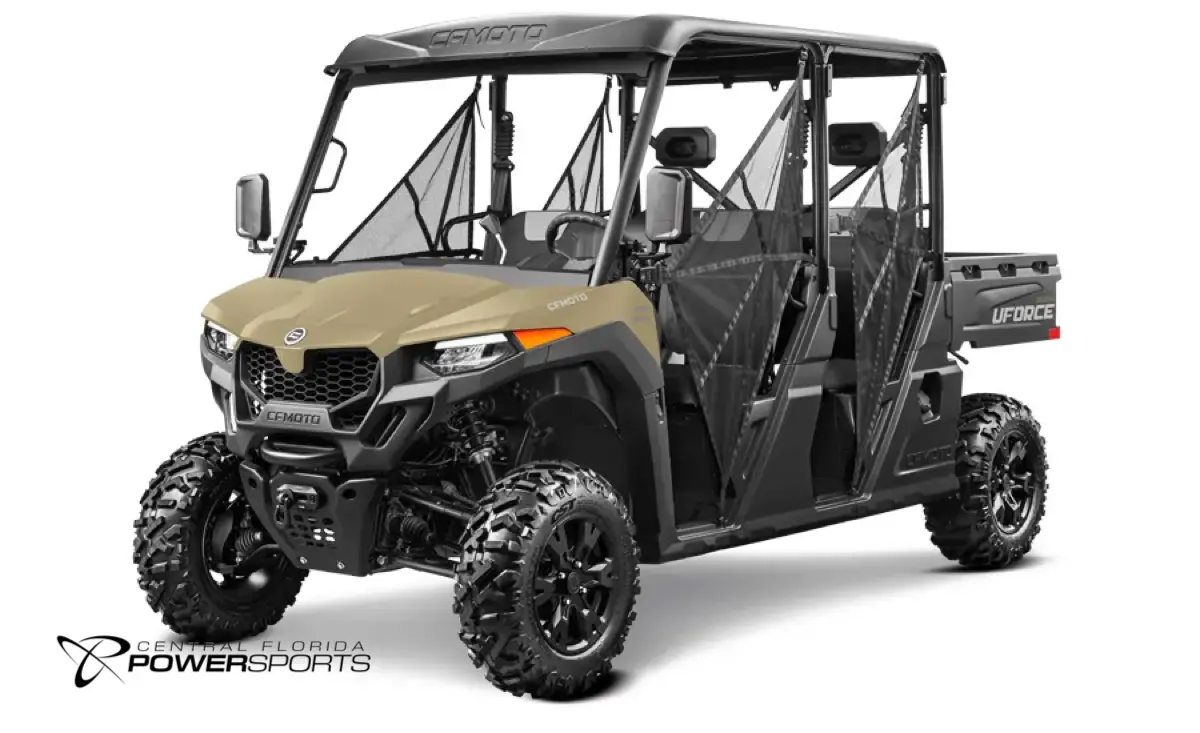

2026 CFMOTO UForce 800 XL Extended-Length UTV

Description

When the job calls for more people, more gear, and more gusto, the UFORCE 800 XL answers without hesitation. Built around a 63 hp V-Twin engine and the buttery-smooth OmniDrive™ transmission, this machine handles heavy loads, rough terrain, and long days like it was born for it. Bench seating for four means nobody gets left behind, while a 660-lb. dump box and 4,500-lb. winch turn big tasks into big results. It’s a utility side-by-side with the heart of a workhorse and the hustle of a cowboy.

• ENGINE TYPE
  V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
• DISPLACEMENT
  800cc
• MAX POWER
  63 HP @ 7000 rpm
• MAX TORQUE
  51 LB-FT @ 5500rpm
• FUEL SYSTEM
  Bosch® EFI
• COOLING SYSTEM
  Liquid cooled
• DRIVE
  2WD/4WD/4WD lock
• TRANSMISSION
  OmniDrive™ CVT P/R/N/H/L
• CHARGING OUTPUT (Watts)
  600W
• LENGTH X WIDTH X HEIGHT
  143” x 60” x 79”
• WHEELBASE
  109.1”
• DRY WEIGHT
  1629 lbs.
• GROUND CLEARANCE
  11.8”
• FUEL TANK CAPACITY
  10.5 gal.
• CARGO CAPACITY
  660 lbs.
• TURNING RADIUS
  18′
• SUSPENSION
  Front: High clearance A-arm independent / Rear: Double A-arm independent
• WHEELS
  14” Cast Aluminum
• TIRES
  Front: 27” x 9” x 14”, Rear: 27” x 11” x 14”
• SHOCKS
  Spring preload adjustable, oil damped
• BRAKES
  4-wheel hydraulic disc with parking brake
• WHEEL TRAVEL
  Front 8.9” / Rear 8.9”
• HITCH/RECEIVER
  2”
• TOWING CAPACITY
  1500 lbs.
• WINCH
  4500 lbs. w/ nylon rope
• ADDITIONAL FEATURES
  Electronic power steering, Bosch® electronic throttle with work/normal modes, 4500 lb. winch with synthetic rope , two 2-person bench seat, 5” LCD display, CFMOTO RideSync app compatible (T-Box), 12V outlet, USB port, side nets, LED headlights/taillights with backup lights, tilt steering, roof, side mirrors, skid plate, rear sway bar, locking rear differential, large 10.5 gal. fuel tank, 2” receiver, adjustable driver’s seat, under-seat storage area, front bumper
• COLORS
  Desert Tan, TrueTimber® Kanati, Twilight Blue
