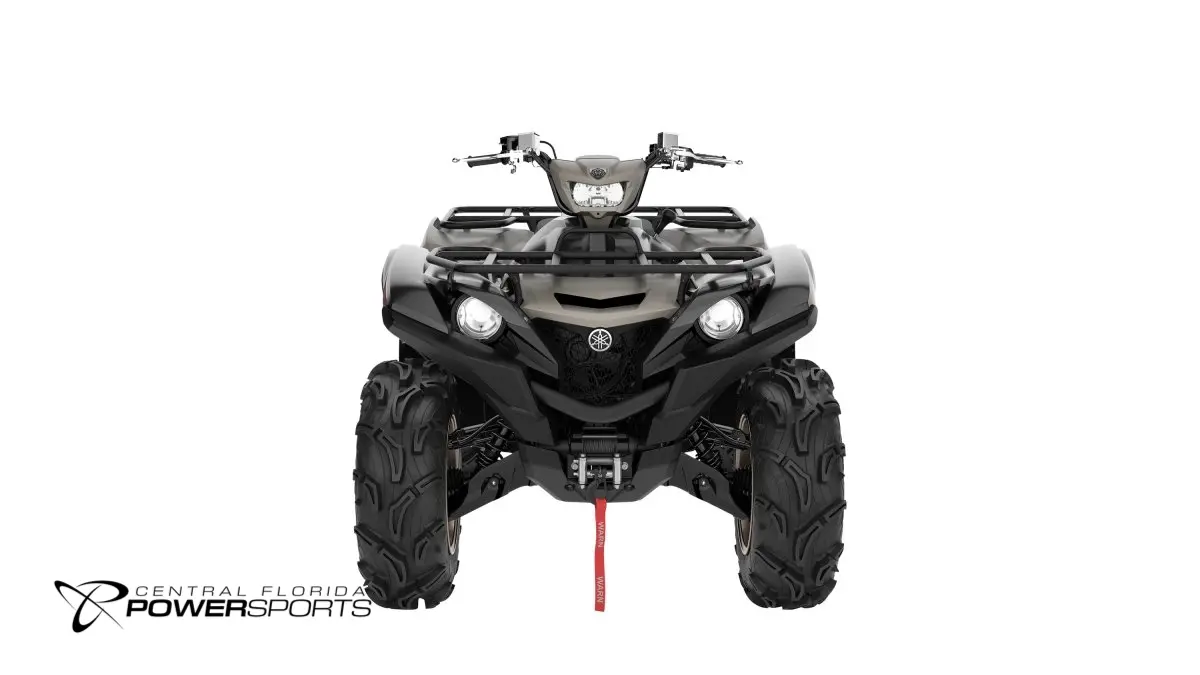

2024 Yamaha Grizzly EPS XT-R Off-Road ATV

Description

ADVENTURE READY EXPLORER

This XT‑R Edition is ready for extreme adventure with a factory‑installed WARN® Winch, Special Edition paint, color‑matched wheels and aggressive tread Maxxis® ‘Zilla tires.

• Engine Type
  686cc liquid-cooled SOHC 4-stroke
• Bore x Stroke
  102.0mm x 84.0mm
• Compression Ratio
  10.0:1
• Fuel Delivery
  Yamaha Fuel Injection (YFI), 44mm
• Transmission
  Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P
• Final Drive
  On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft
• Fuel Capacity
  4.8 gal
• Suspension/Front
  Independent double wishbone; 5-way preload adjustment, 7.6-in travel
• Suspension/Rear
  Independent double wishbone with anti-sway bar; 5-way preload adjustment, 9.1-in travel
• Brakes/Front
  Dual hydraulic disc
• Brakes/Rear
  Dual hydraulic disc
• Tires/Front
  AT27 x 10-14 Maxxis® ‘Zilla MU01
• Tires/Rear
  AT27 x 10-14 Maxxis® ‘Zilla MU01
• LxWxH
  81.5 in x 49.2 in x 50.0 in
• Seat Height
  36.6 in
• Wheelbase
  49.2 in
• Max. Ground Clearance
  11.8 in
• Fuel Capacity
  4.8 gal
• Wet Weight***
  783 lb
