200 RPM Johnson DC Gearmotor with Side Shaft Output

Description

Johnson Geared Motor Premium Quality Imported New Model 200 RPM

Specifications:

1. Rated Base Motor RPM: 18000
2. Gear Material: Metal
3. Rated Speed (RPM): 200
4. Operating Voltage (VDC): 6 ~ 18
5. Nominal Voltage (V): 12
6. Rated Torque(kg-cm): 3.9
7. Stall Torque(Kg-Cm): 15.6
8. No-Load Current (mA): 300
9. Load Current Max (mA): 900
10. Shaft Diameter (mm): 6
11. Shaft Length (mm): 30
12. Gearbox Diameter (mm): 37

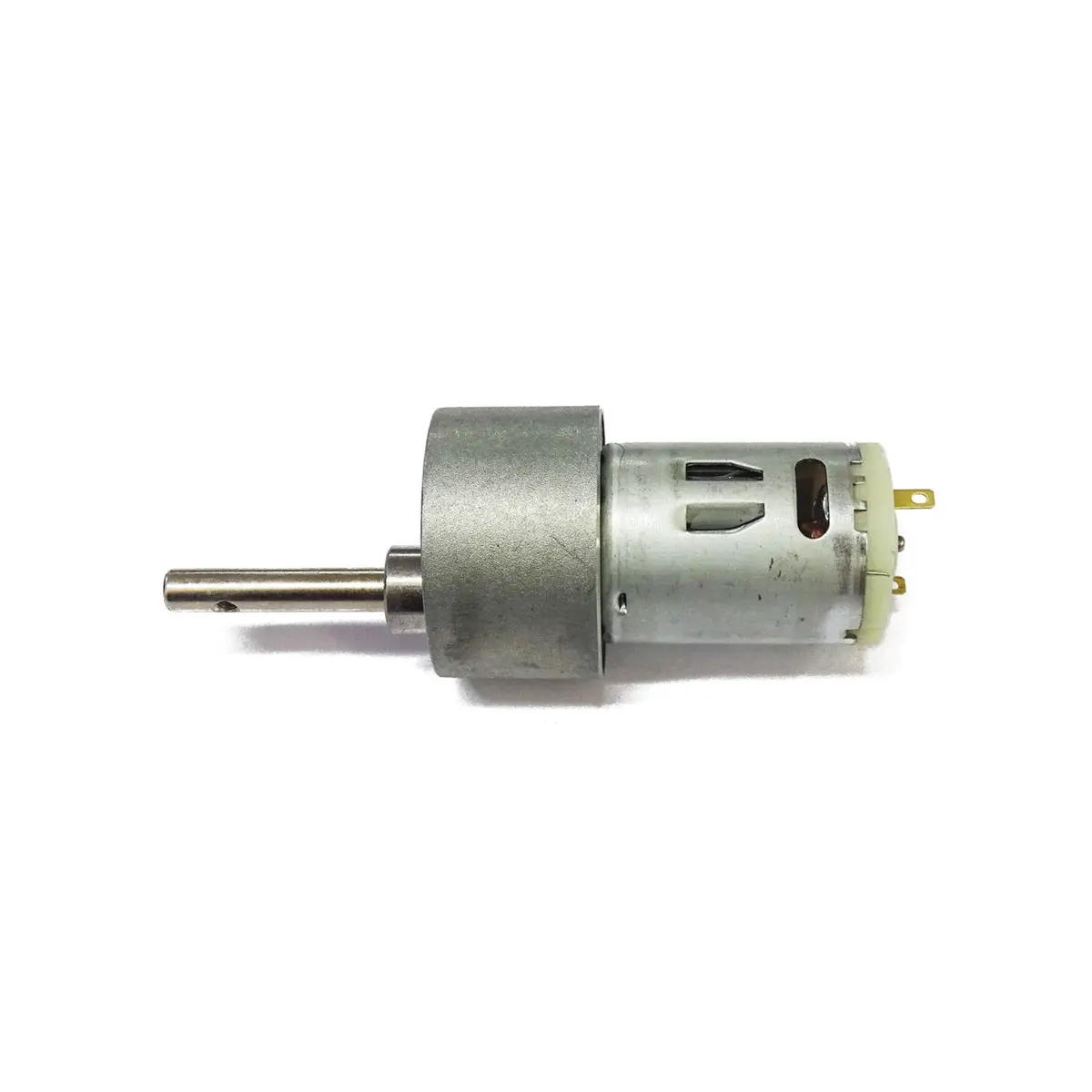

The Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling.

Features:

1. The motor has a sturdy construction.
2. Shaft equips metal bushes for long life.
3. It comes with High-Quality gears.
4. The shaft has a hole for better coupling.
