Description
- High Voltage IGBT with low saturation voltage
- Collector-Emitter Voltage (VCE): 1200V
- Collector Current (IC): 30A @25°C
- Minimum Gate threshold voltage (VGE) is 4.5V
- Maximum Gate threshold voltage (VGE) is 8.5V

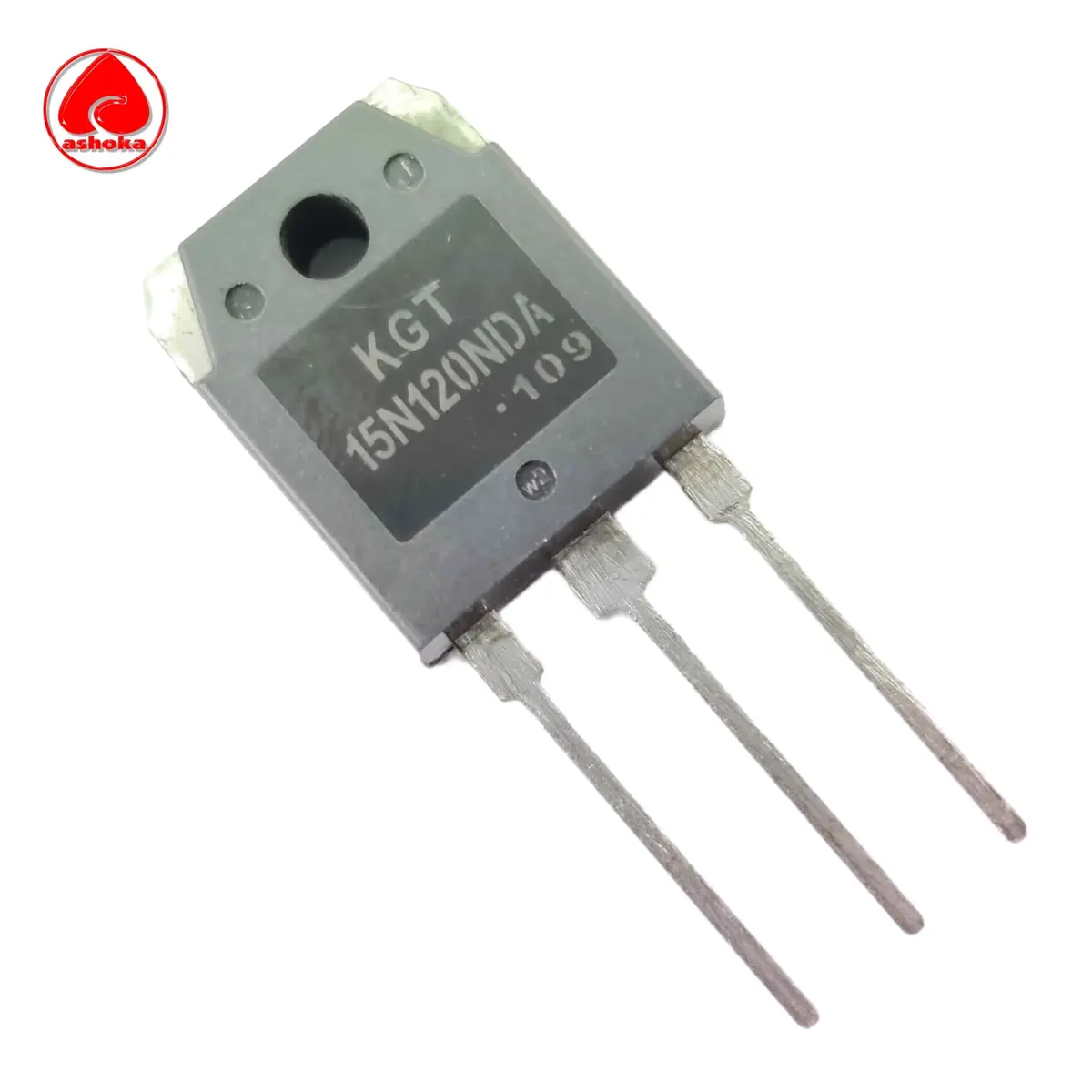

The 15N120 is a high voltage IGBT with a Collector to Emitter voltage of 1200V and continuous collector current of 30A. It also has a very low collector emitter saturation voltage of 1.9V and low switching losses.
FEATURES:
·High speed switching
·High system efficiency
·Soft current turn-off waveforms
·Extremely enhanced avalanche capability
Pin Description
|
Pin Number |
Pin Name |
Description |
|
1 |
Gate |
Controls the biasing of the IGBT |
|
2 |
Collector |
Current flows in through Source |
|
3 |
Emitter |
Current flows out through Emitter |
