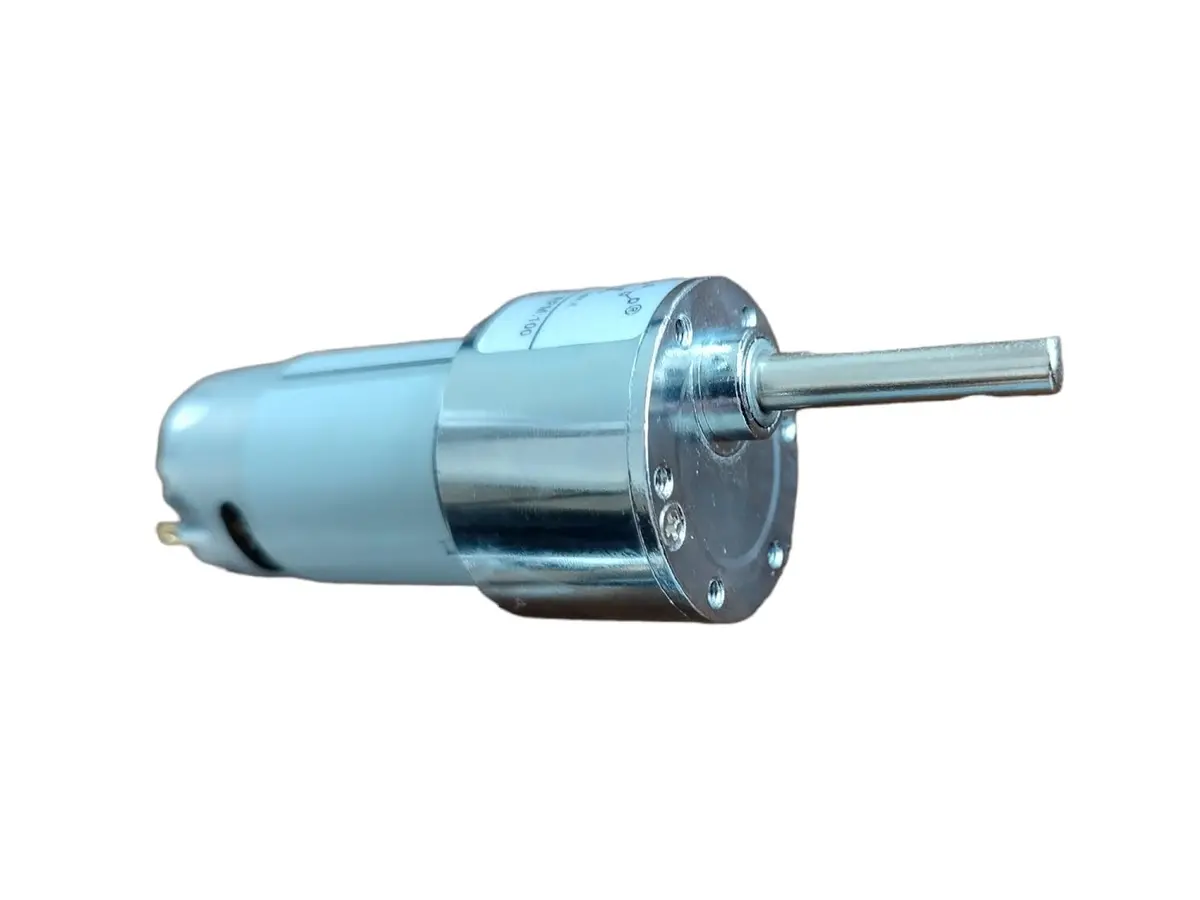

10 RPM Side-Shaft DC Gear Motor – Grade-A Johnson Precision Reduction Motor

Description

1. Base Motor RPM: 11000
2. Operating Voltage: 12 V
3. Rated Voltage: 12 V
4. Rated Torque: 472.6 N-cm
5. Stall Torque: 2250 N-cm
6. 120kgcm Holding Torque
7. No-load current = 800 mA, Load current = upto 7.5 A(Max)
8. 10RPM 12V DC motors with Metal Gearbox and Metal Gears
9. 6mm Dia shaft with M3 thread hole
10. Gearbox diameter 37 mm.
11. Motor Diameter 28.5 mm
12. Length 63 mm without shaft
13. Shaft length 30mm
14. 180gm weight

10RPM 12V Johnson high torque DC geared motors for robotics applications. It gives a massive torque of 120Kgcm. The motor comes with metal gearbox and off-centered shaft.
