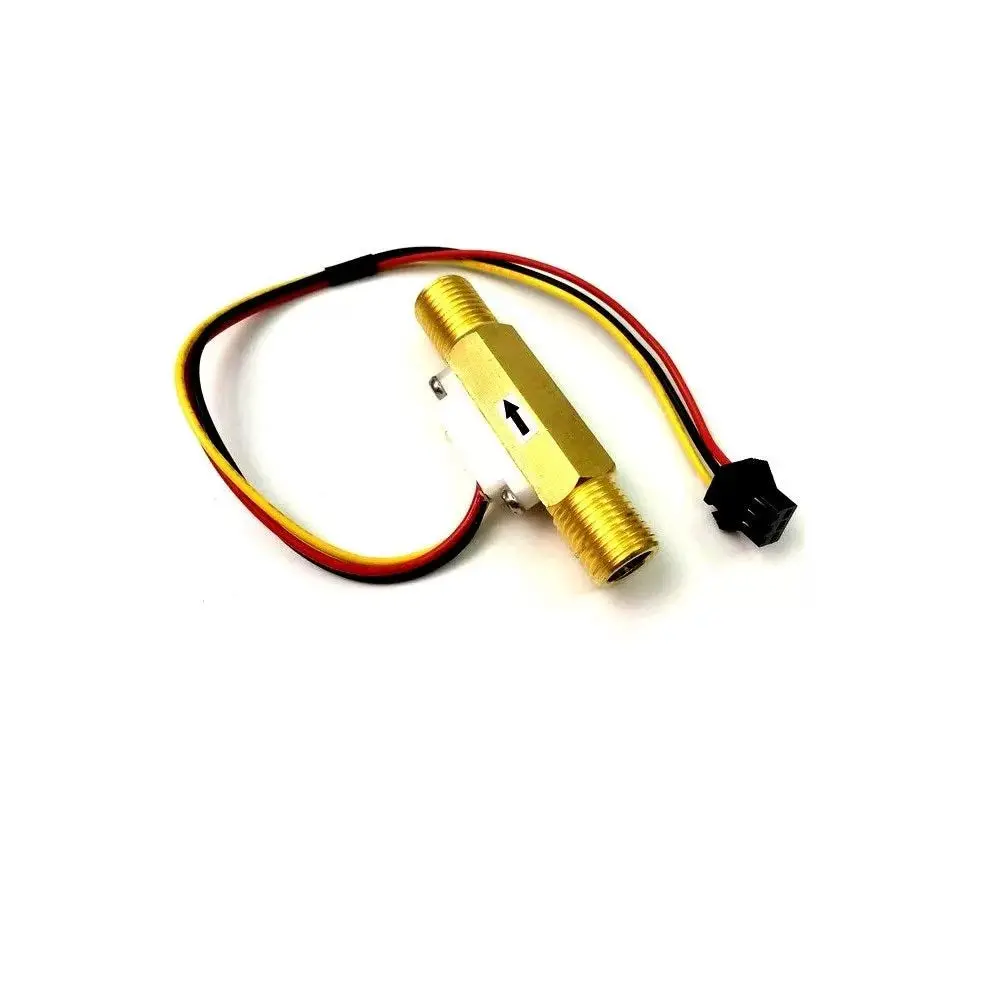

1/4″ Brass Water Flow Sensor – Compact Pulse-Type Flow Detector (Model SEN-HZ41WC)

Description

• Material: Brass
• Color: Golden
• Flow Range: 0.35-3L/min
• Specification: 62*15*17mm

1/4 ” Brass Water Flow Sensor-SEN-HZ41WC, The pulse signal water flow sensor is widely applied in industrial equipment, agricultural equipment, and household electrical appliances in the future.

The water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, the rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

Sensor Wire Details:

• 3-pin JST connector
• Red: Vcc
• Black: Ground
• Yellow: Pulse Output signal

Features/Specs

• Material: Brass
• Color: Golden
• Flow Range: 0.35-3L/min
• Specification: 62*15*17mm
• Used medium: Water
• Maximum Pressure: 1.2Mpa
• Working voltage: DC4.5-18V
• Custom Made: Wire harness specification
• Insulated Resistor: ≥100Ω
• Max Working Current: 15mA

Package Includes:

• 1 x 0.6 cm (1/4″) Brass Water Flow Sensor-SEN-HZ41WC

Note: Product Images are shown for illustrative purposes only and may differ from actual product.
